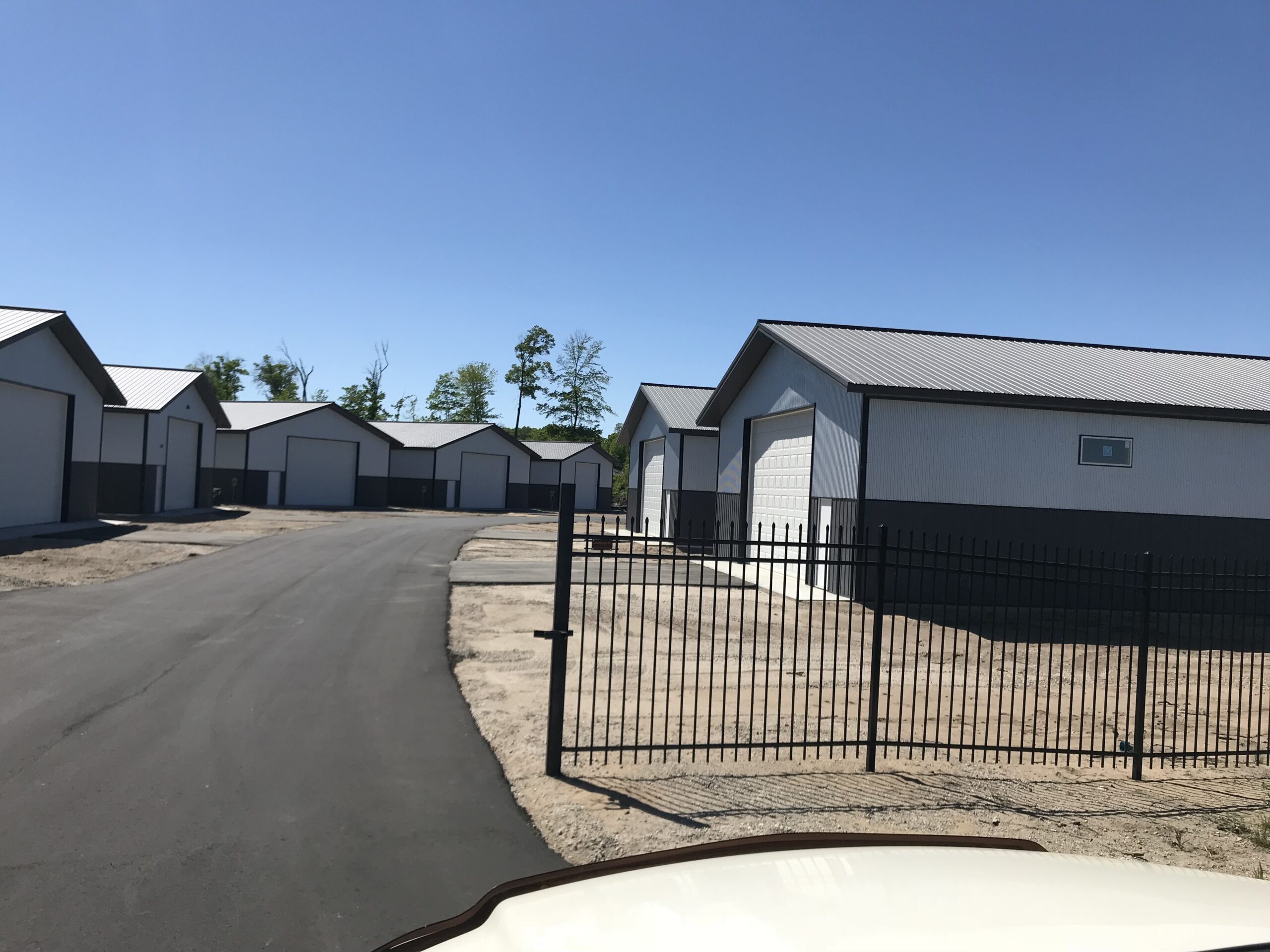

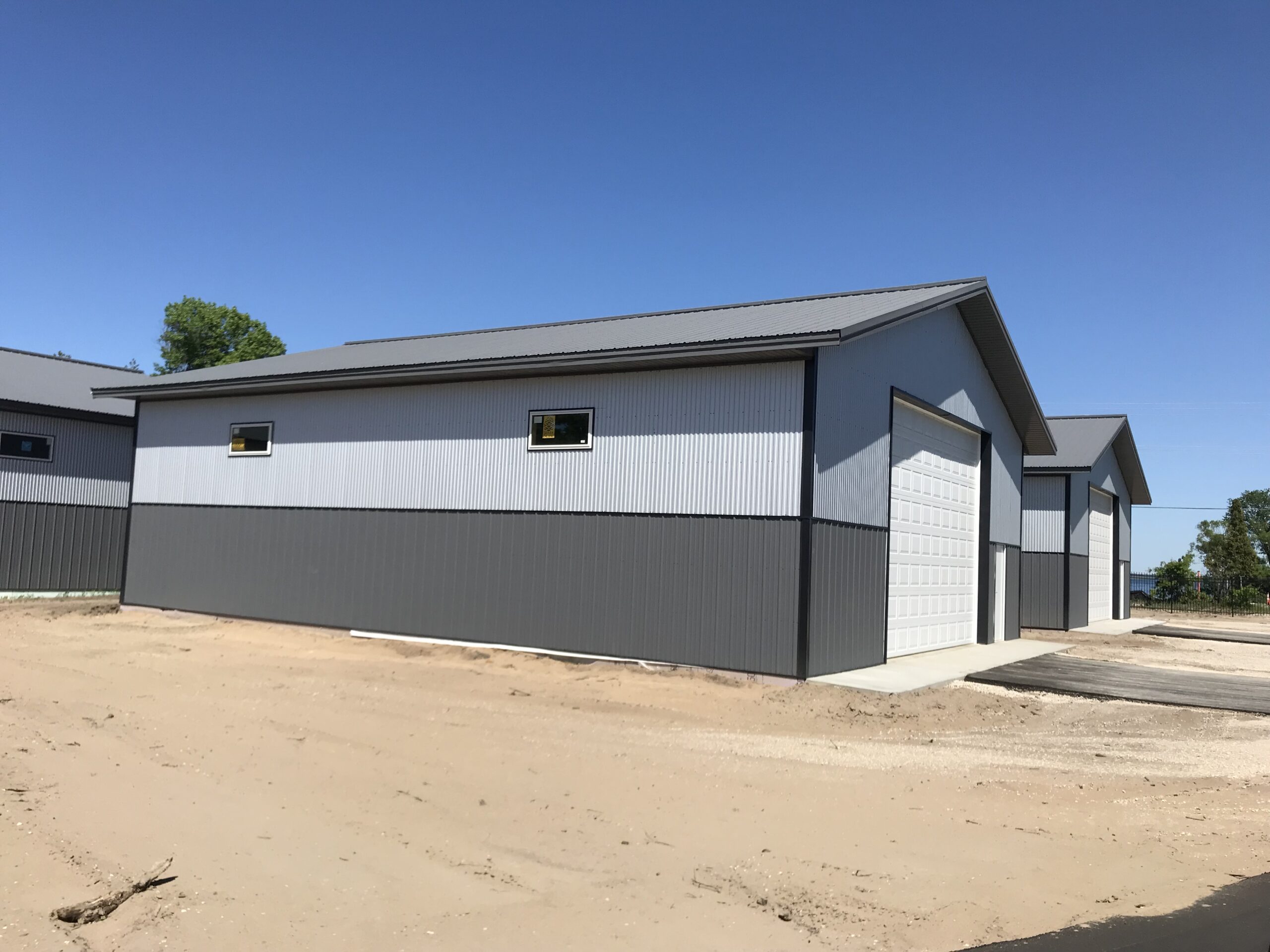

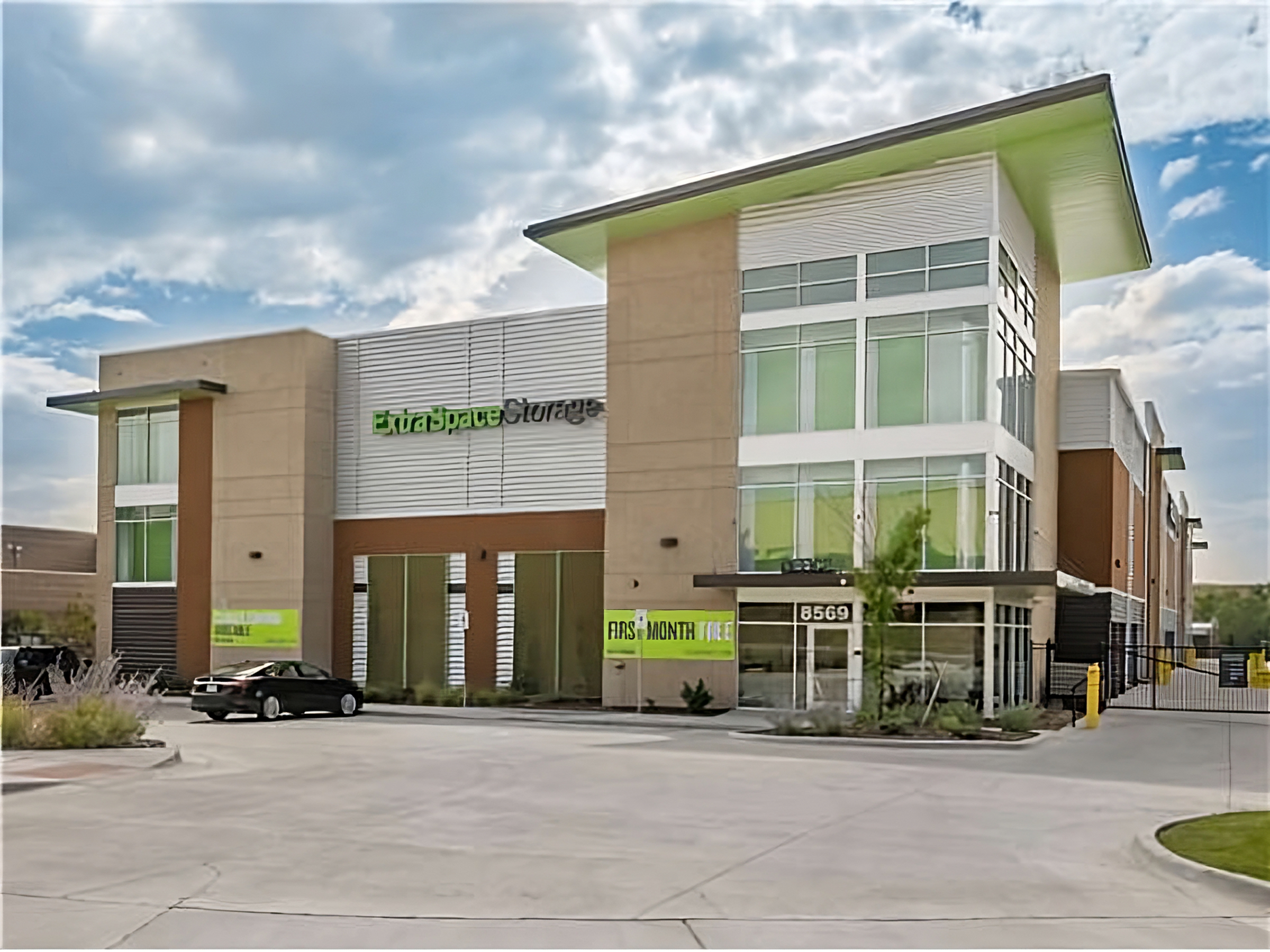

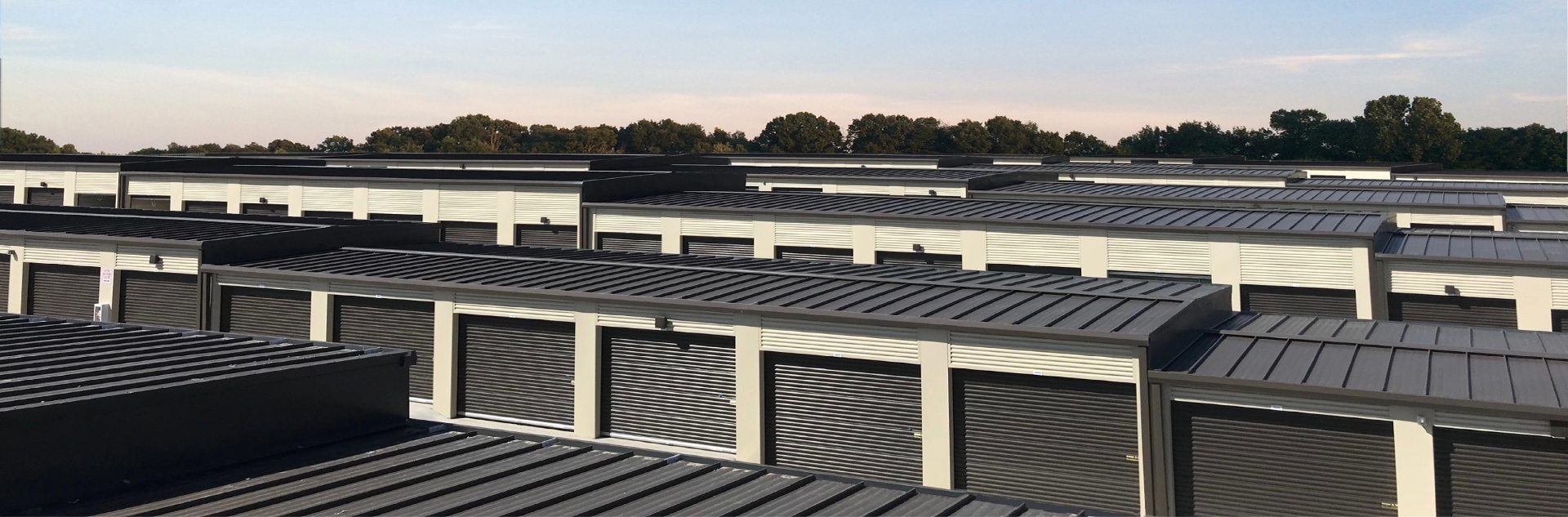

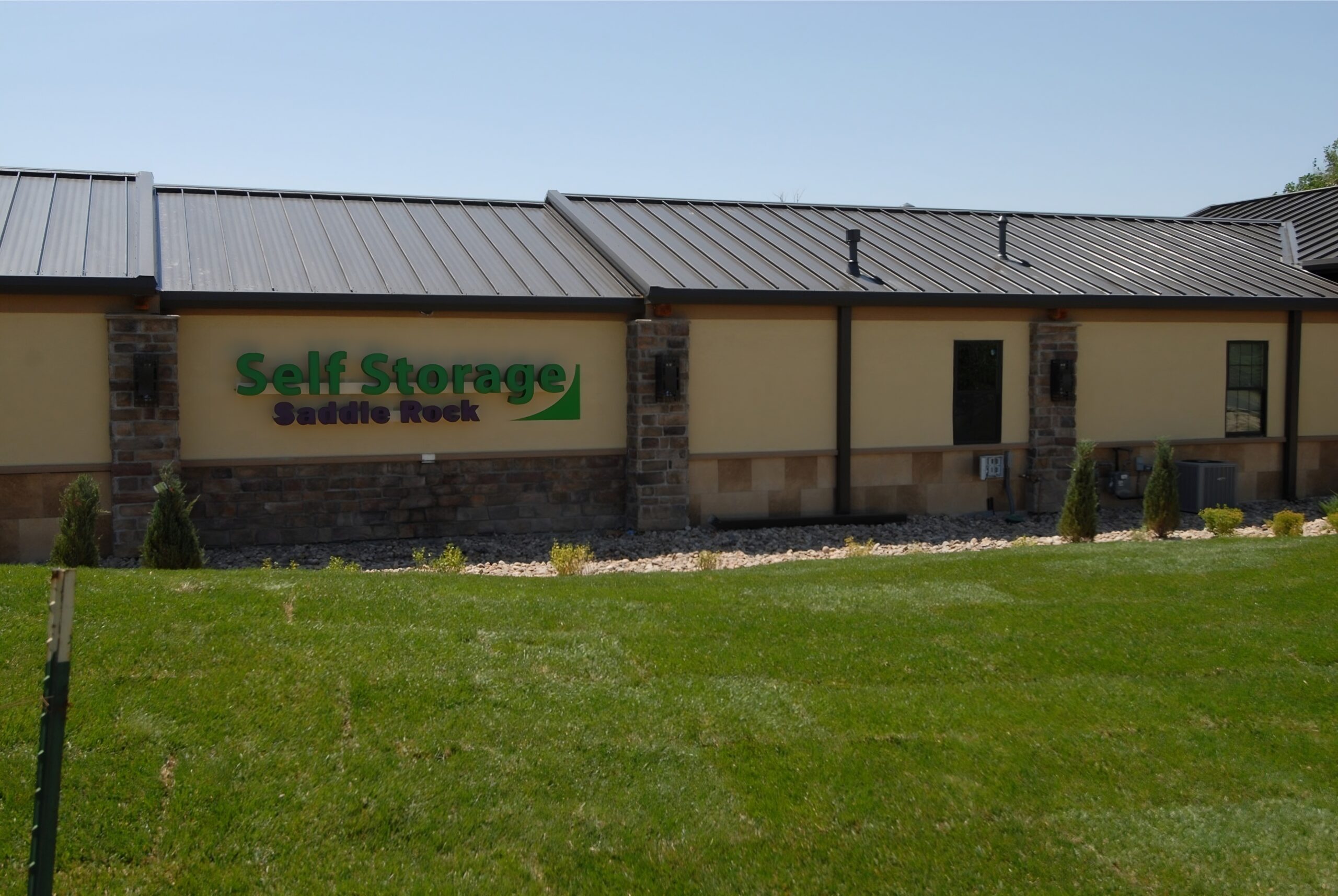

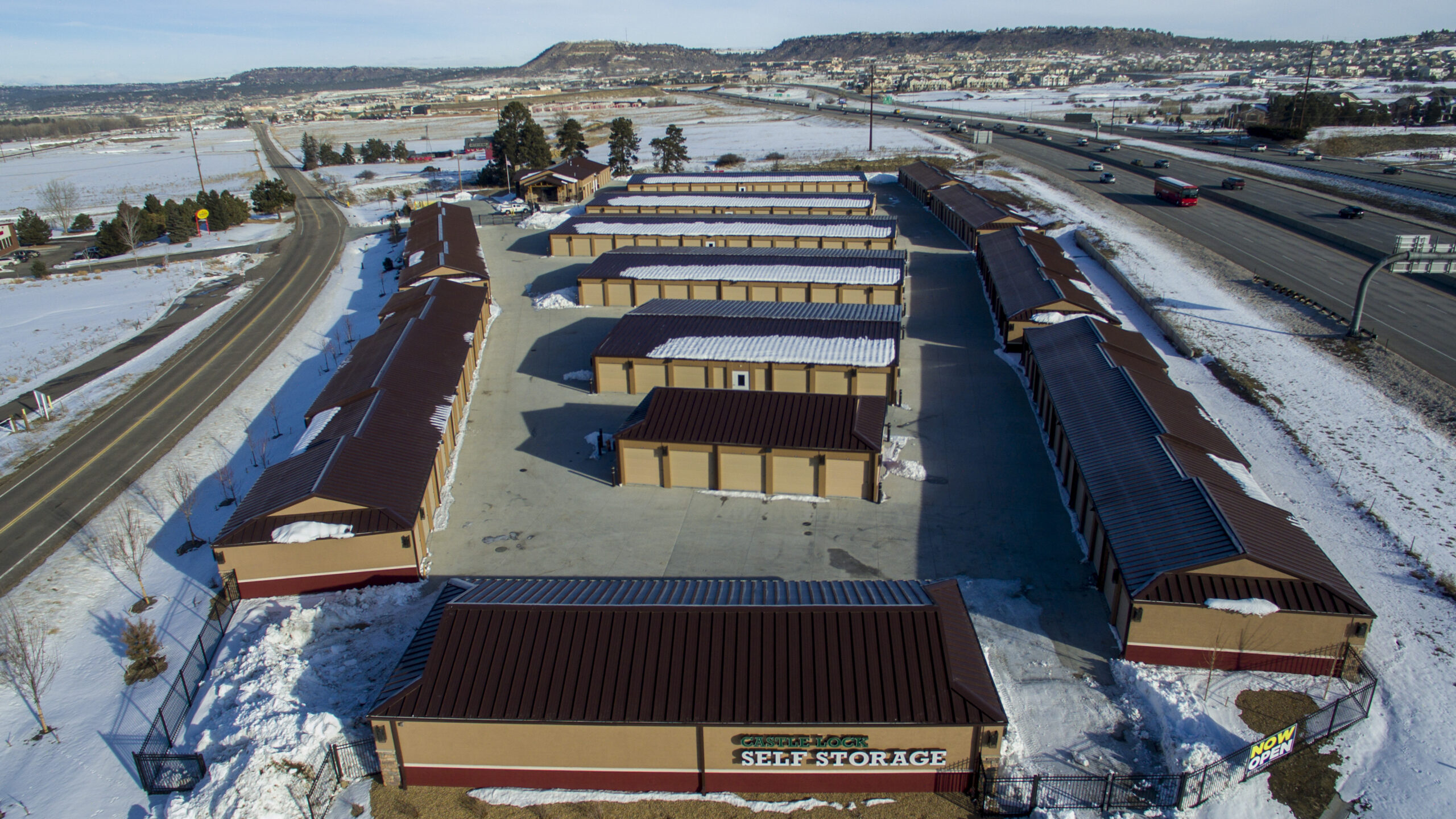

SELF STORAGE SOLUTIONS

Self-storage units are found in almost every community across the country and Metal Sales understands the specific needs associated with these types of builds. We offer the flexibility in quoting a wide variety of shapes and sizes to fit your self-storage needs.

WHAT OUR MBS CUSTOMERS RECEIVE FROM METAL SALES

MBS software automatically prepares erection drawings unique to each building inputted, including Anchor Bolt Plans
A stamped engineer seal is available for the erection drawings upon request
The Metal Sales Technical Services department will provide the latest testing and approval information
Trained Metal Sales team members will work with you to take your self storage building concepts and make them into a reality
Standard building sizes and specs can be inputted for quick quoting
Custom building designs are a breeze with the MBS software

IF YOU’RE READY TO TAKE YOUR SELF STORAGE BUILDS TO THE NEXT LEVEL, CONTACT METAL SALES TODAY! WE WILL WALK YOU THROUGH THE DESIGN PROCESS AND OFFER YOU A FREE QUOTE.

COMMON SELF STORAGE PANELS

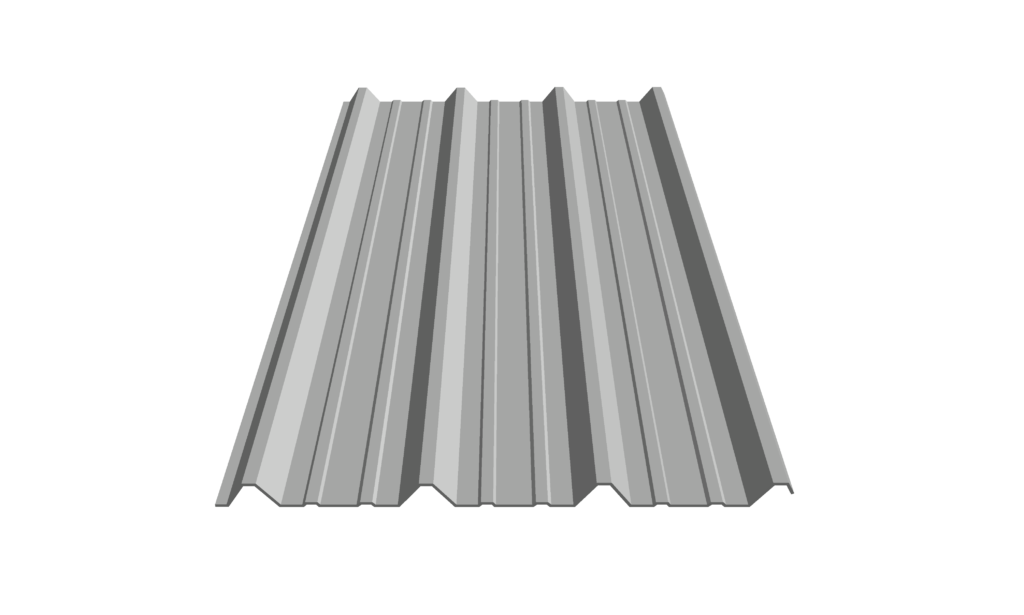

PBR- Panel
PBR-PANEL

Panel Features:

  • Direct Exposed-Fastener Panel
  • Gauges: 24 and 26
  • Coverage: 36″
  • Rib Height: 1-1/4″
  • Finishes: Galvalume, MS Colorfast45 and PVDF
Snap- LOC 24
SNAP-LOC 24

Panel Features:

  • Concealed Clip-Fastened, Snap Seam
  • Gauges: 24
  • Coverage: 24″
  • Rib Height: 1-1/4″
  • Finishes: Galvalume and PVDF
  • Optional: Weathertight Warranty

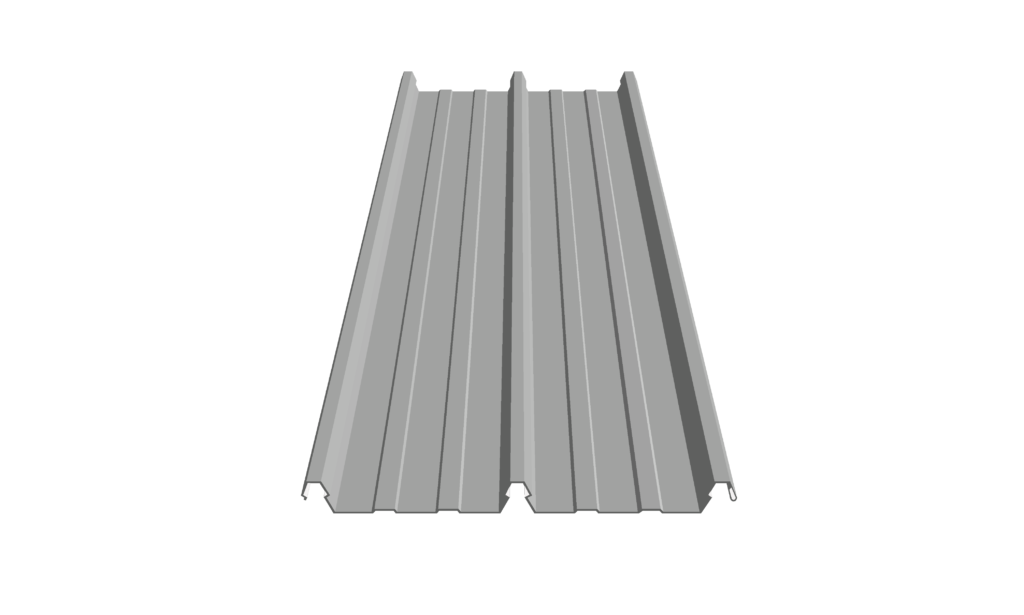

Clip-LOC
CLIP-LOC

Panel Features:

  • Concealed Clip-Fastened Panel
  • Gauges: 24 and 26
  • Coverage: 16″
  • Rib Height: 1-5/8″
  • Finishes: Galvalume, MS Colorfast45 and PVDF
  • Optional: Weathertight Warranty
PBU- Panel
PBU-PANEL

Panel Features:

  • Direct Exposed-Fastener Panel
  • Gauges: 26 and 29
  • Coverage: 36″
  • Rib Height: 3/4″
  • Finishes: Galvalume and MS Colorfast45

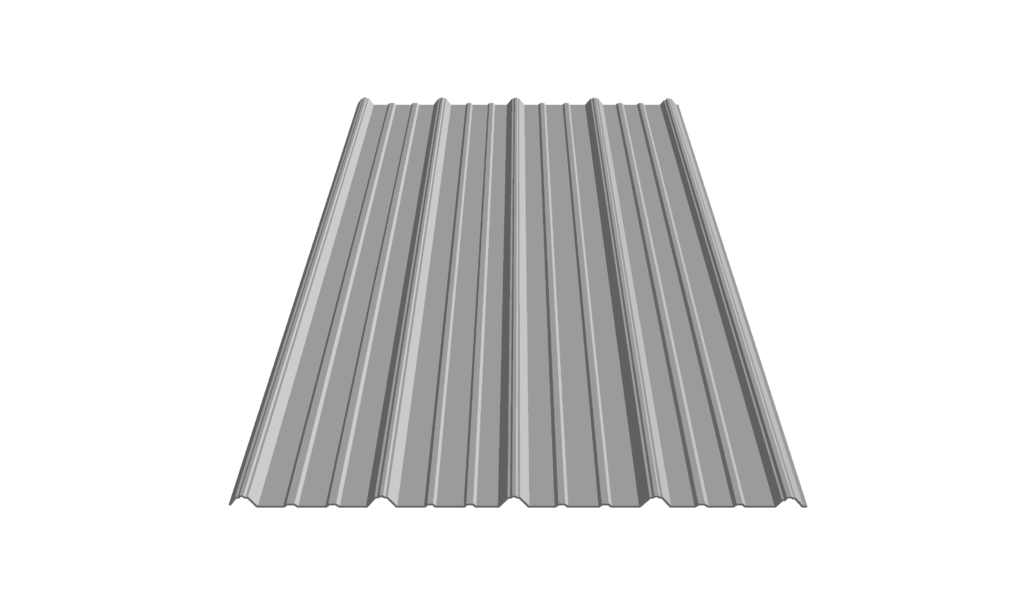

Classic RIB
CLASSIC RIB

Panel Features:

  • Direct Exposed-Fastener Panel
  • Gauges: 29
  • Coverage: 36″
  • Rib Height: 3/4″
  • Finishes: Galvalume and MS Colorfast45

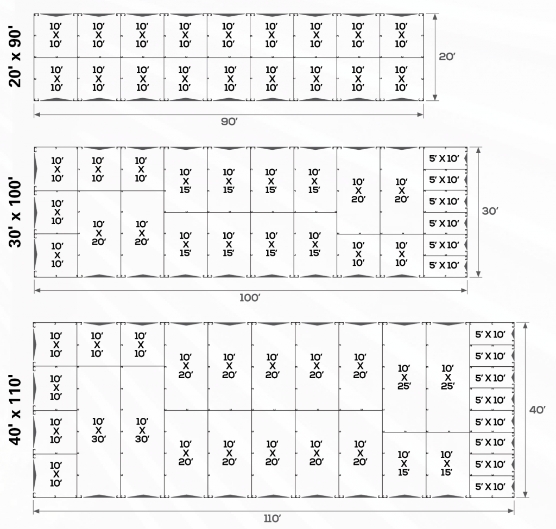

SAMPLE FLOOR PLANS

Floor Plan Samples

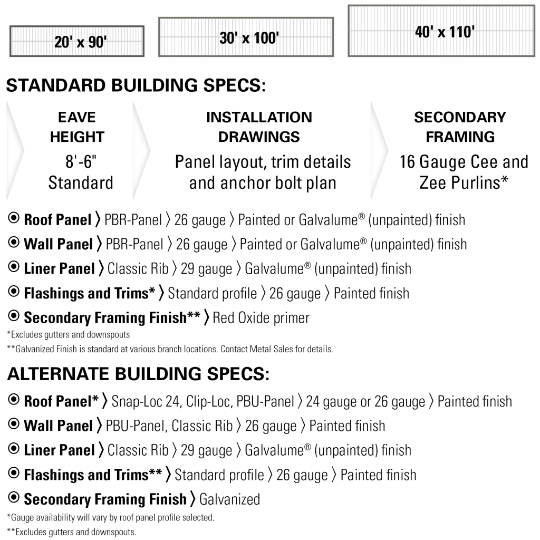

BUILDING OPTIONS

Building Option Guide

Self Storage Solution Brochure

SELF STORAGE SOLUTIONS BROCHURE

Click to download the pdf.
